Bombardier SKIDOZER 252 Manuals Ready

Krisp3

New member
Did anyone ever get a complete copy of this manual?? I downloaded it and only get the odd numbered pages, and even some of tho are missing.

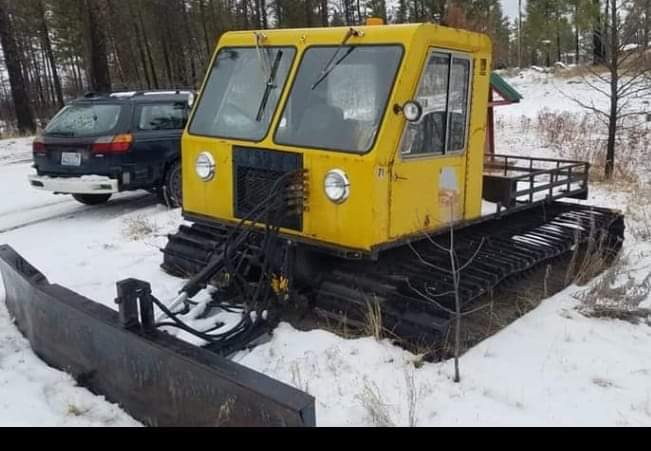

I recently aquired a 1978 br252g with a valley engineering 6 way blade on the front and a steerable fold up drag on the back. It runs and moves, but the steering levers don't work and needs alot of going through, fluid changes and adjustments and will probably get a complete cosmetic overhaul this coming summer.

Any help or info would be greatly appreciated!


Icehutman

New member
No, the only copy I found was the the every other page one. The unit my brother has had steering issues as well. I removed the cover plate over the rear end to check the steering brake pads....just like on an older dozer and found them to look like new so I did the adjustment according to the few pages of the manual I have...20 ft. pounds torque each side and it made a real difference. I think the previous owner failed to do this when he changed the brake bands. After that you adjust by tightening the side that doesn’t turn one flat on the nut at a time. Other issue you may have is either a leaky steer cylinder, leaky line or bad transfer unit in the cab. It’s a real simpleton system. You should be able to figure the problem fairly quickly. DONOT EXPECT the unit to turn on a dime even in the snow!
Good luck!


Backyardski

BackyardskiLima
GOLD Site Supporter

Attachments

  • DF70EDE7-20A6-4189-8153-97EDFF2DC3D9.png
    2.1 MB · Views: 299

AMartin

New member
Im looking for the manuel for a skidozer 252D, more specifically the hydraulic system, if someone could email it to me or a link or anything it would be great! our machine is down and this is for a snowmobile club and the pay for a trail pass and the trails are not groomed we need to get this running asap!! Thanks.


Backyardski

BackyardskiLima
GOLD Site Supporter
Im looking for the manuel for a skidozer 252D, more specifically the hydraulic system, if someone could email it to me or a link or anything it would be great! our machine is down and this is for a snowmobile club and the pay for a trail pass and the trails are not groomed we need to get this running asap!! Thanks.


What you are looking for is here
https://m.facebook.com/groups/513423092129226/?ref=group_header&view=group
Go to the 14th post as of 11:15 am Eastern 2/4/19
They want $90, 252 G, 252 D -includes hydraulic specs.
Sure it’s 90 bucks but then you have it forever
Not mine, just playing matchmaker

Last edited:

Backyardski

BackyardskiLima
GOLD Site Supporter
I didn’t mean to be redundant by posting that again, just saw it was still on there.
I would hope the guy would sell the manual for less than $90, that is steep. They usually go for $40-50. The parts manuals are really handy, they show exploded views of almost the whole machine plus electrical and hydraulic schematics along with part numbers that make ordering a lot easier. It doesn’t sound like anyone has the full manual available, just think of all the people you could help with that on your shelf��


AMartin

New member
Thank you for the reply, we got our issue figured out but I think I will get the manual anyways for next time because it breaks down pretty often. lol


Backyardski

BackyardskiLima
GOLD Site Supporter

Attachments

  • DCF7349B-AB80-42B3-BD40-1042113A78EC.jpg
    81.8 KB · Views: 113
